11. Re:wave

Re:wave is project of one last moments to take with us from the earth.
Like natural phenomenon that we approach to the wave and we running back from the wave,
If you try to touch the sand and water or grab the shellfish and pearl then wave will coming

Concept

Re:mind & Re:create the moment

that refreshing moment when sand, water and our bodies blend together.

The waves always come ashore and repeat themselves back to sea.
When the waves return to the sea, people find shellfish, starfish, pretty pebbles, etc. and try to picking up these, and play hide-and-seek to escape
the waves that come back.

About

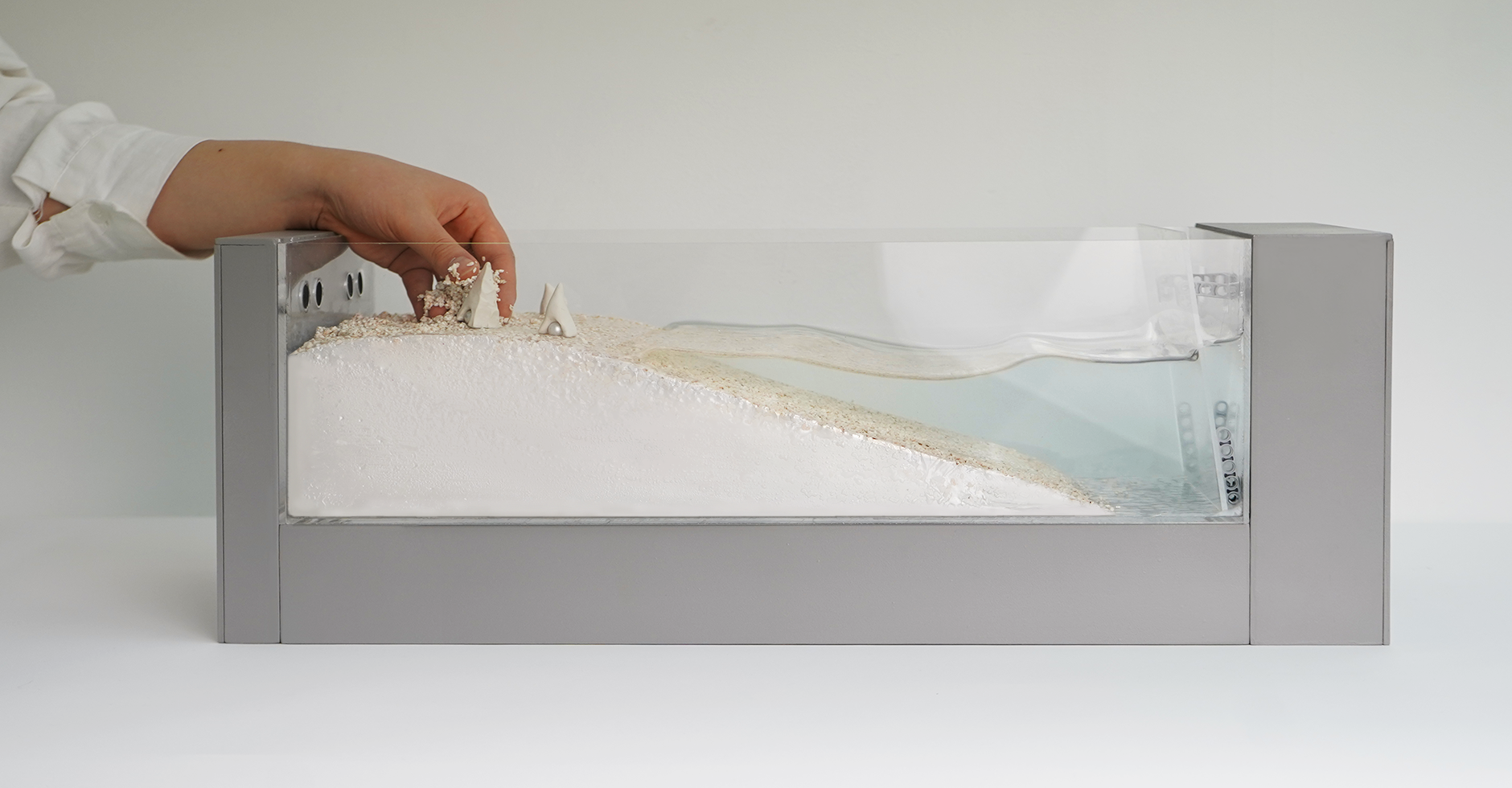

Re:wave is a device that generates waves when a user's hand approaches sand and objects.

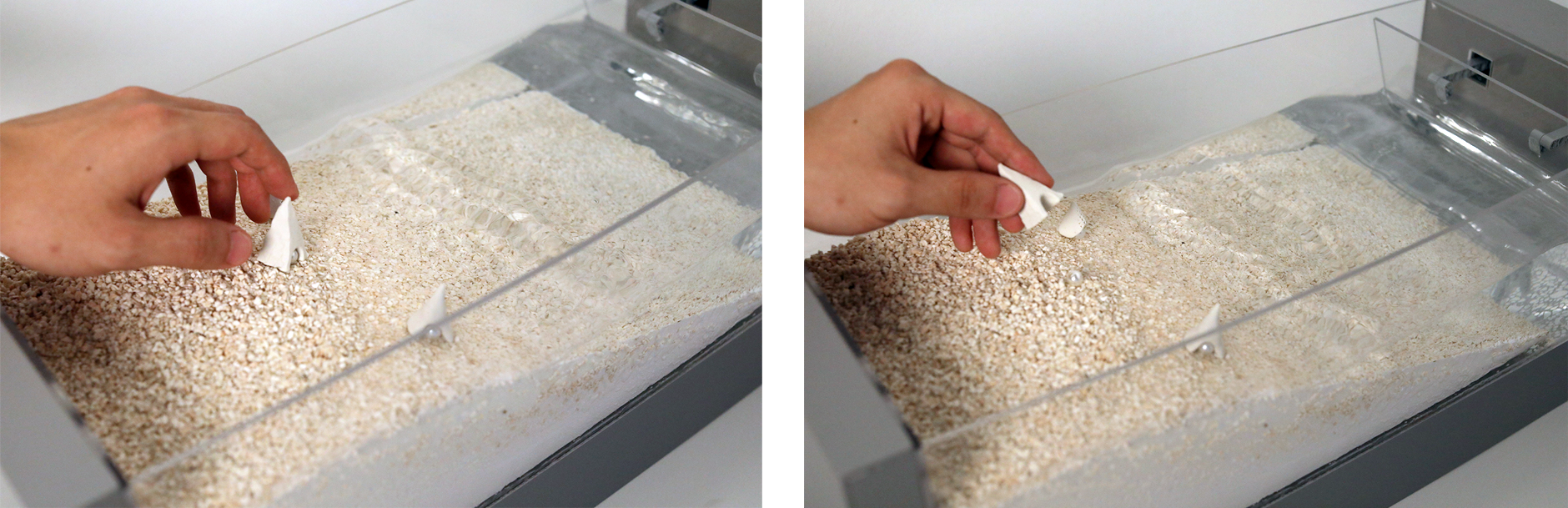

The user can play to pull out pearls from the shell-motivated object before wave touch their hand,
they also can immerse in the imagination at that moment feeling the haptic of scattered sand and swaying waves.

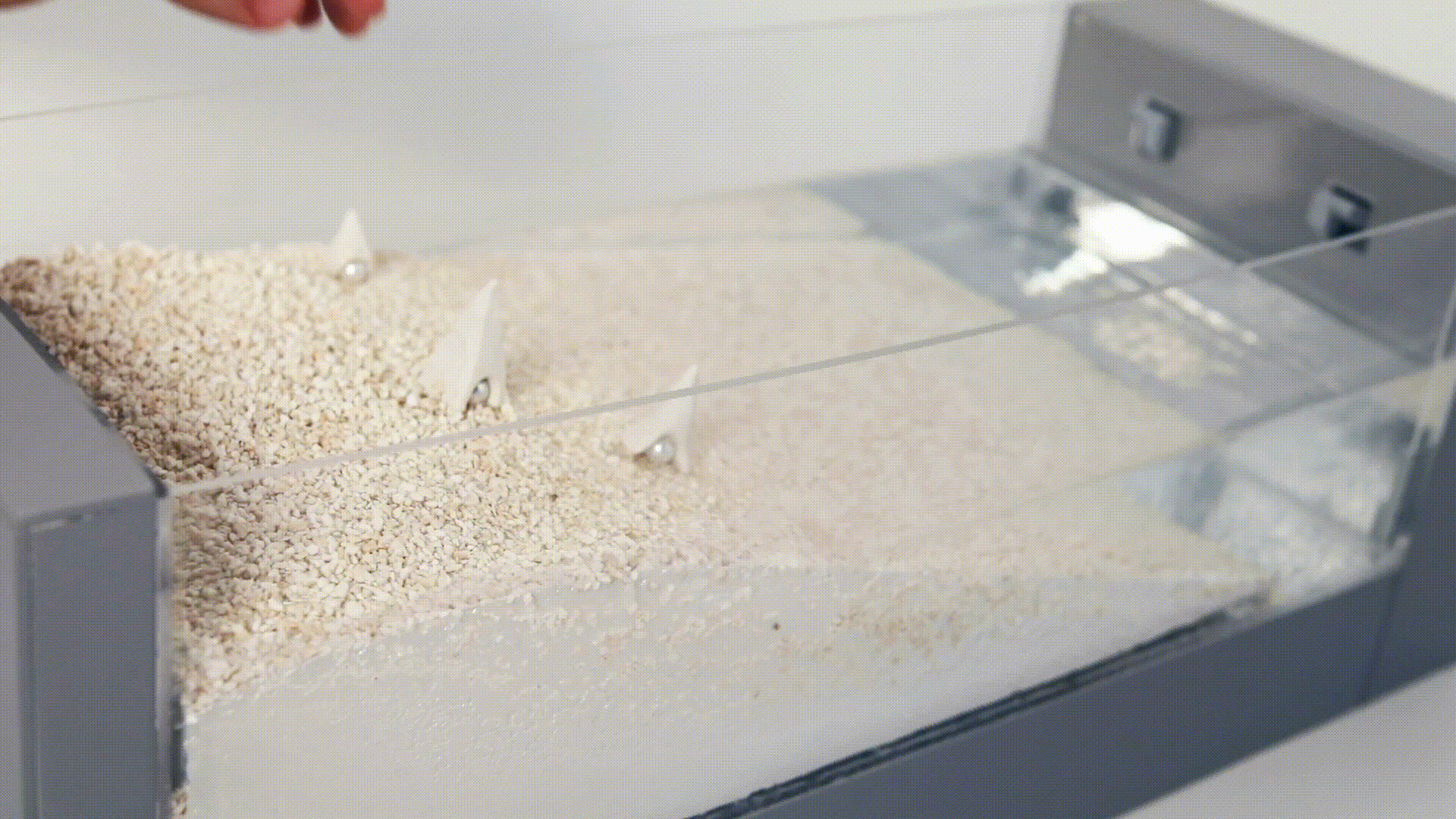

Scene#1. Play with wave & pearl

Scene#2. Feel the haptic of wave & sand

Input

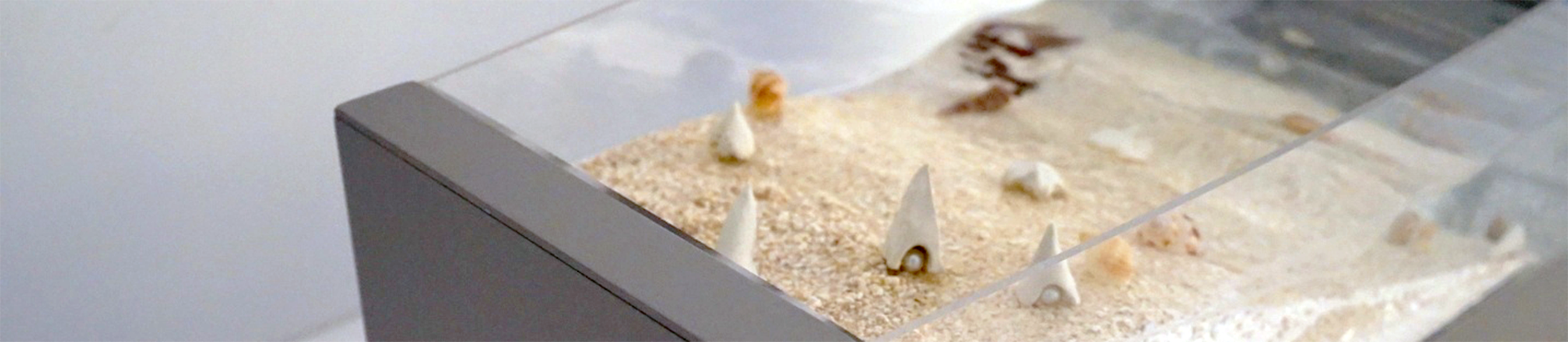

Sandy beach, shell-motivated objects, and sea-like water are interfaces.
Especially, shell and pearls became affordance, we planned to people can see part of pearl
which hide in shell-motivated object so they naturally touch them with curiosity.
When people wonder what is in the objects and reach a hand to the objects, sensors are sensing the hand.

Output

The senseors activate motors. When motors move, a plate connected with motors move and make wave and sound.

Product detail

Working process

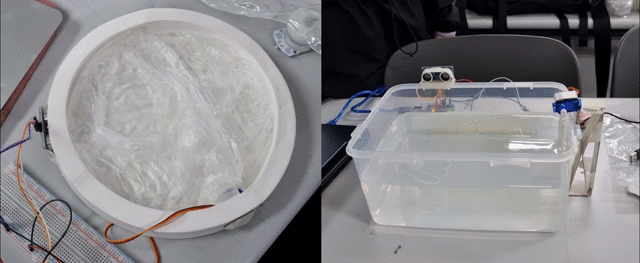

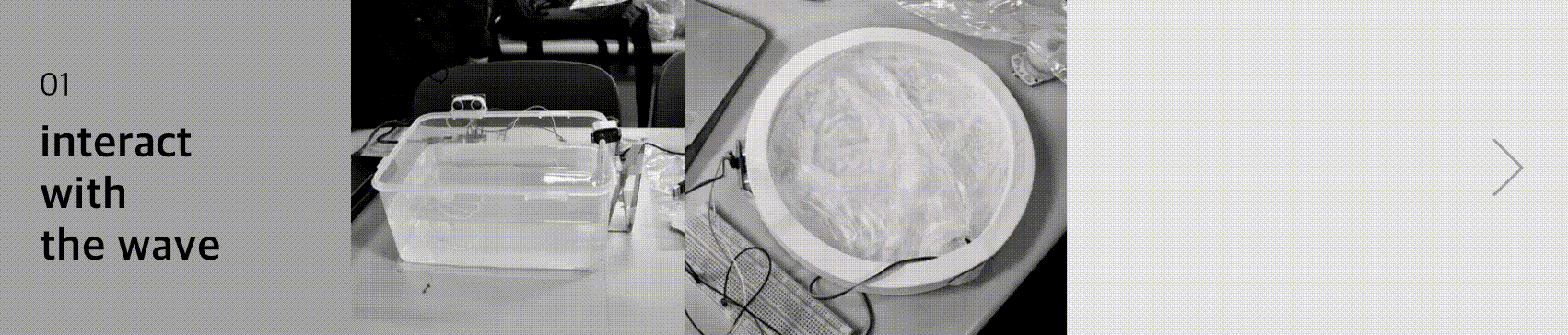

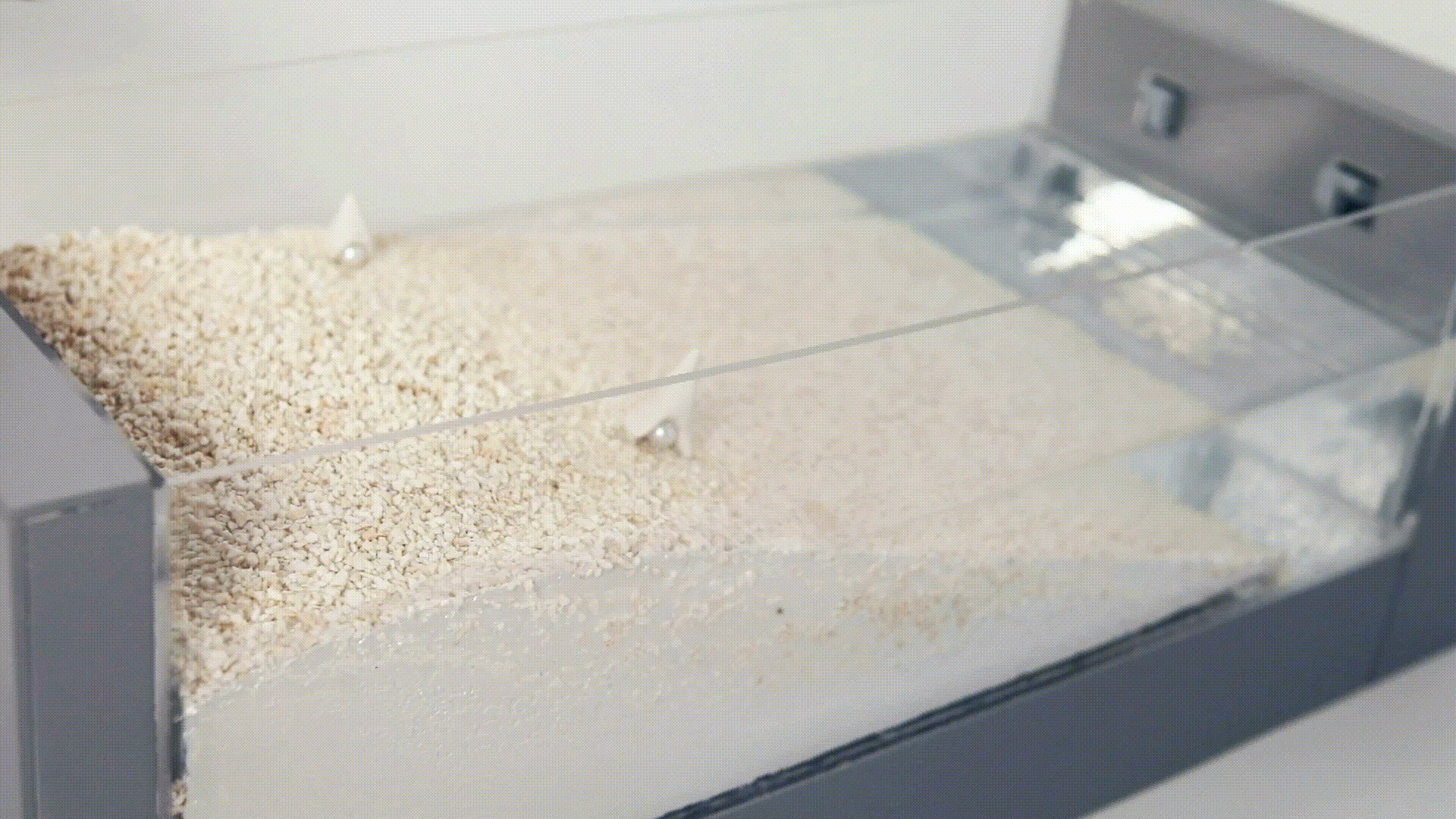

01 Interact with the wave

LEFT_ shallow water
Can feel haptic of water wave

RIGHT_deep water
When people stretch their hand to pick up the pearl inside the water, wave occured

*atract people
*playable with the wave

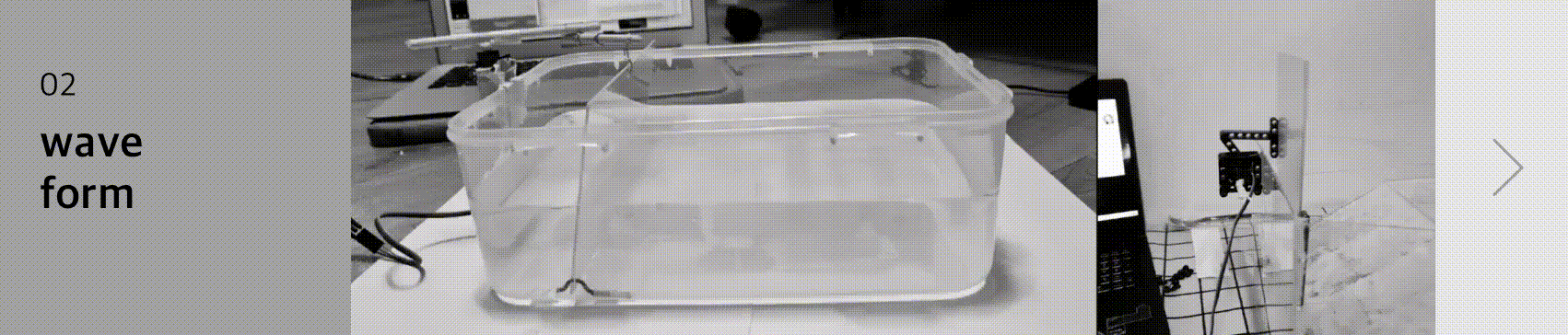

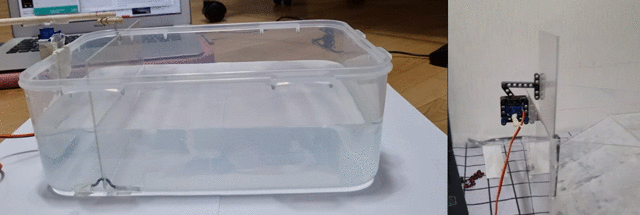

02 Wave form

real wave
To make the wave more like a real wave (shape and rhythm) using arms and plate with the servo motor

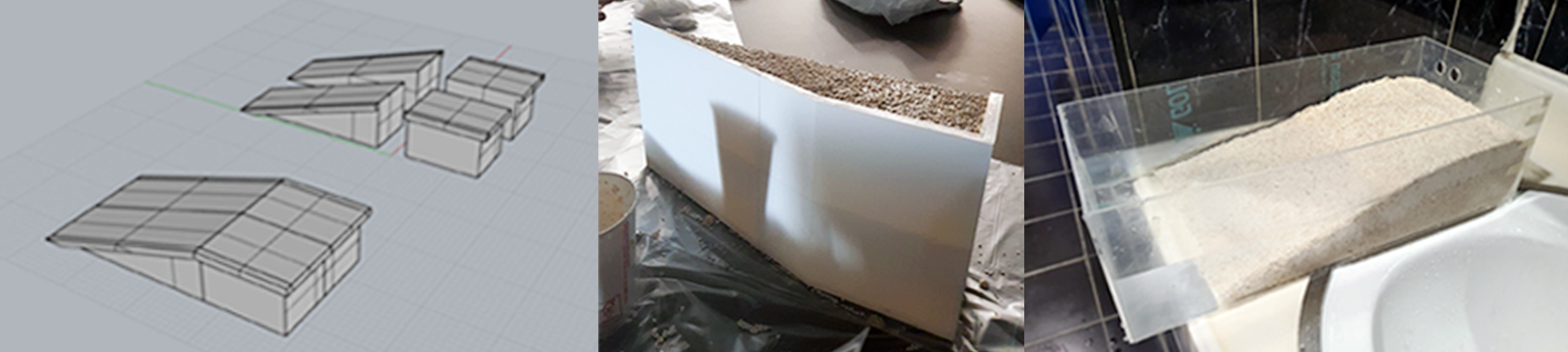

03 Slope & flow

- Hill shape
To prevent sand fall, first we tried to make this little hill shape slope.
However, when using this shape, we have to solve the water flow problem.

* Idea of solving water flow problem

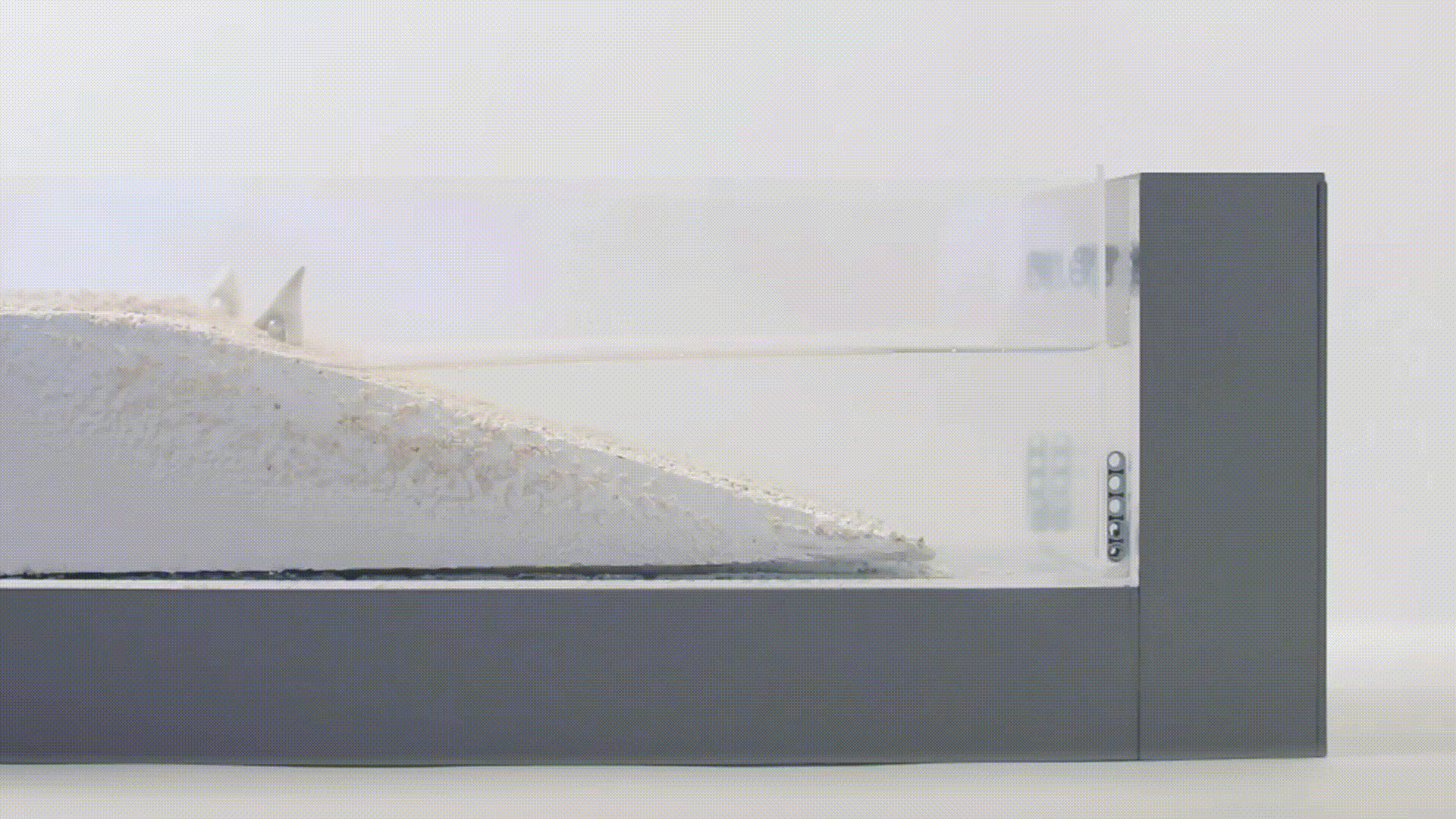

- Flat slope shape
In flat slope, water flow problem didn’t occur.
However, to prevent sand fall easily because of wave, 3d printing and cover with sand with glue first, and little sand add on the slople which people hand will be reach.

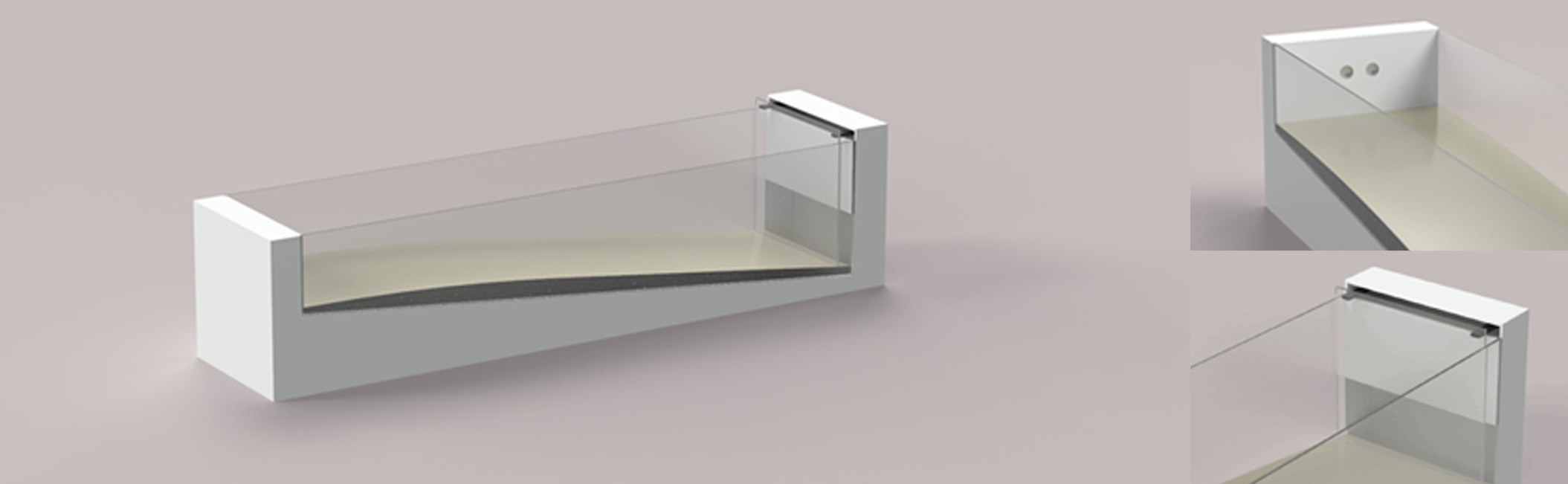

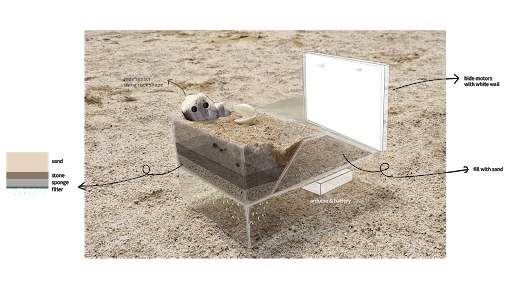

04 hide machine parts

- Various idea of housing

- Modern form
Modern form has merit on focusing interaction and

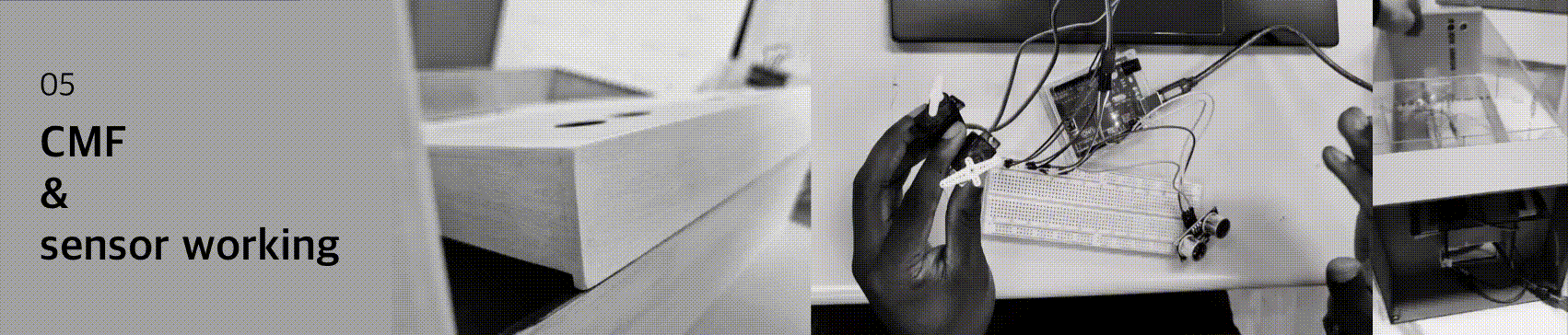

05 Sensor working & CMF

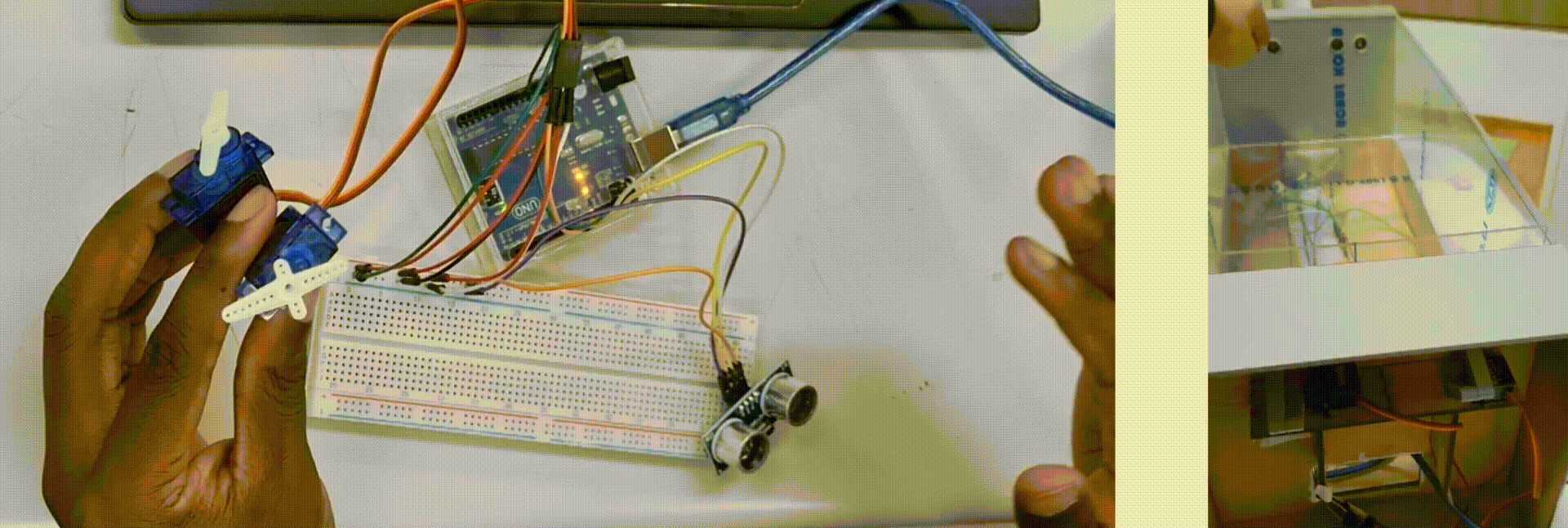

- Sensor working
Acorrding to housing form, 2 sensors are needed and to make strong wave, 2 motors are needed.
Therefore, make cords that connect 2 sensors and 2 motors, together.

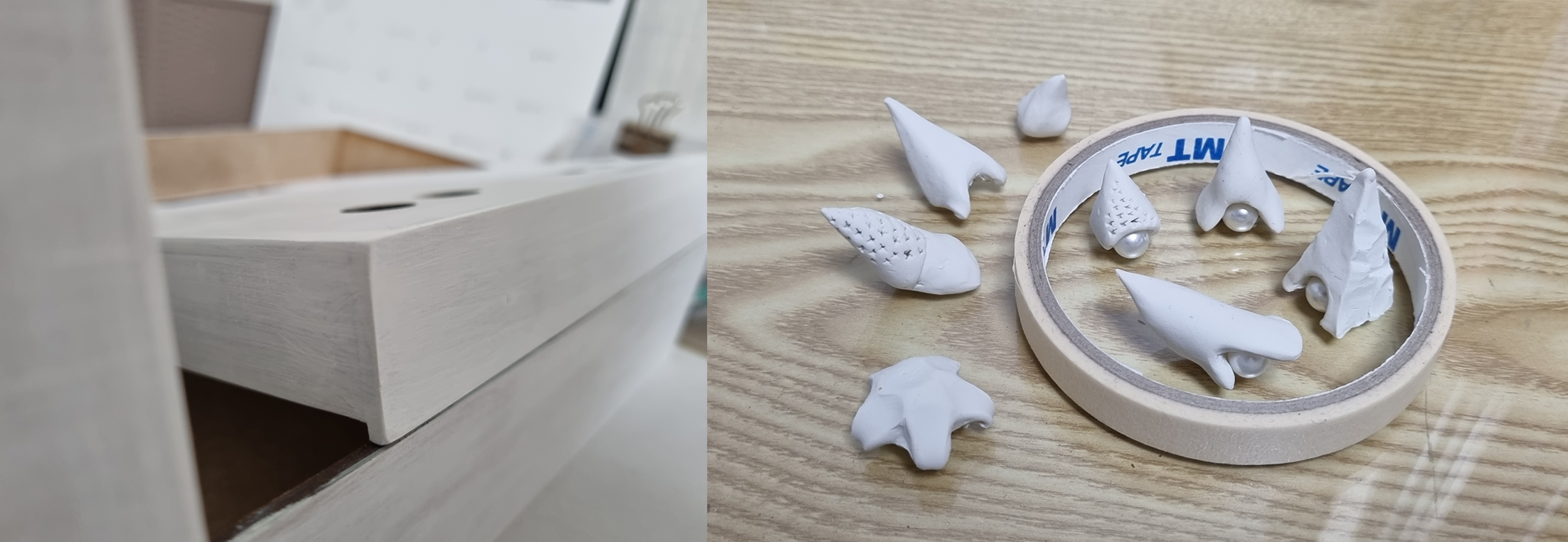

- CMF
To make housing(mdf) looks like product, paint gesso and trimed surface with sandpaper and spray gray paint.
Also, make objects which attract people- make people reach their hands to touch this.
